Continuous Integration vs. Continuous Deployment

The terms Continuous Integration and Continuous Delivery/Deployment tend to be combined into the acronym CI/CD to describe the process of building and deploying software, often without distinction between the two. The terms describe distinct processes, even if combining them suggests that Continuous Delivery and Continuous Deployment are an extension of Continuous Integration and the execution of both processes is the responsibility of a single tool.

Assuming CI/CD is just CI with a deployment step ignores some fundamental differences between the two processes. In this post, we look at:

What Is Continuous Integration?

At a high level, Continuous Integration tooling is concerned with:

A Continuous Integration server facilitates this process by running builds and tests with each commit.

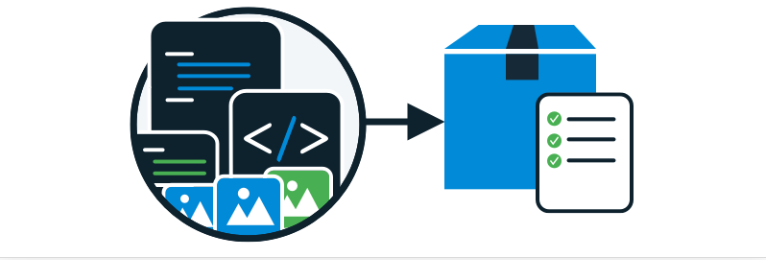

Continuous Integration servers can be described as solving the equation:

code + dependencies + build tools + execution environment = test results + logs + compiled artifact

Continuous Integration vs. Continuous Deployment


The left side of the equation takes the code written by developers, any dependencies of the code, a build tool, and the environment where the build and tests are executed. When these inputs are available, a Continuous Integration server completes the build to produce the elements on the right side of the equation.

When a Continuous Integration server has been configured correctly, each commit to a repository results in the build being run, thus solving the equation without manual intervention from a human.

This means the process implemented by Continuous Integration servers is machine-driven, so much so that it's common for Continuous Integration servers to have read-only user interfaces, like the Jenkins Blue Ocean UI.

The other important aspect of the Continuous Integration equation is that developers provide the inputs, and the outputs are created for developers or people in other technical roles. Employees outside the IT department rarely interact with the Continuous Integration server.

What Are Continuous Deployment and Continuous Delivery?

Continuous Deployment takes the compiled artifacts from a successful build performed by the Continuous Integration server and deploys them into the production environment, resulting in a completely automated deployment workflow. In this scenario, Continuous Deployment is quite rightly an extension of Continuous Integration, and the distinction between the two becomes somewhat arbitrary.

Such commit-to-consumer workflows are common in simple projects. More complex projects can also have a completely automated deployment workflow if the appropriate tests and monitoring systems are in place.

But while fully automated deployments have many benefits, it's not uncommon for deployments to involve human decision-making. There are many valid reasons for not automatically deploying every commit to the main branch into production, including:

The term Continuous Delivery is used to distinguish workflows that incorporate human decision-making from Continuous Deployment workflows that are fully automated.

Where Continuous Integration tooling is machine-driven for many teams, Continuous Delivery is human-driven. Much of the grunt work of performing a deployment is still automated, but the decision to promote a release through to production is a human one. Importantly, the decision may not be made by technical employees but rather by product owners, managers, or someone who stayed up until midnight to click the deploy button.

Why Use Separate Continuous Integration and Continuous Delivery Tools?

Continuous Integration vs. Continuous Deployment

A typical CI/CD pipeline, with no distinction between the two.

This slide is from a talk titled How to build cloud-native CI/CD pipelines with Tekton on Kubernetes. It's a classic example of how simple projects merge Continuous Integration and Continuous Deployment into a single process where a production deployment starts as soon as the code has been compiled.

There's nothing wrong with this process, and it works as intended if every part of the pipeline remains fully automated. But what happens if a human needs to test and approve the application before it's released?

For this decision to be made, the deployment process must be interrupted. For example, we'd first deploy the application to a test environment, allow the appropriate parties to verify the changes, and when everyone is happy, the release is promoted to production.

This single decision point means our once machine-driven equation now:

This focus on the human element is frequently lost when CI/CD is presented as nothing more than a deployment step, automatically performed after the code has been compiled. For instance, the Jenkins documentation recommends that the test and production environments be modeled as stages in a Continuous Integration pipeline.

At first glance, this example appears to provide a point in the process for a human to approve the deployment, but what happens to a build that was never intended to be pushed to production? Such a build would be canceled before the application is exposed to customers, resulting in a failed build. These failed builds are difficult to distinguish from builds that failed to compile or failed their tests, even though not promoting to production is the expected behavior of the Continuous Delivery process in this instance.

In short, a good deployment tool facilitates the human decision-making process that is so common (if not essential) to deployments, or at the very least surfaces the current state of the deployments between environments and automates the deployment, so promotions between environments are easy and reliable.

Conclusion

Recognizing the different requirements between a machine-driven Continuous Integration process and a human-driven Continuous Delivery process is essential for delivering features to your customers in a fast, reliable, and repeatable manner. This is why using dedicated tools for Continuous Integration and Continuous Delivery can make sense.

Happy deployments!
